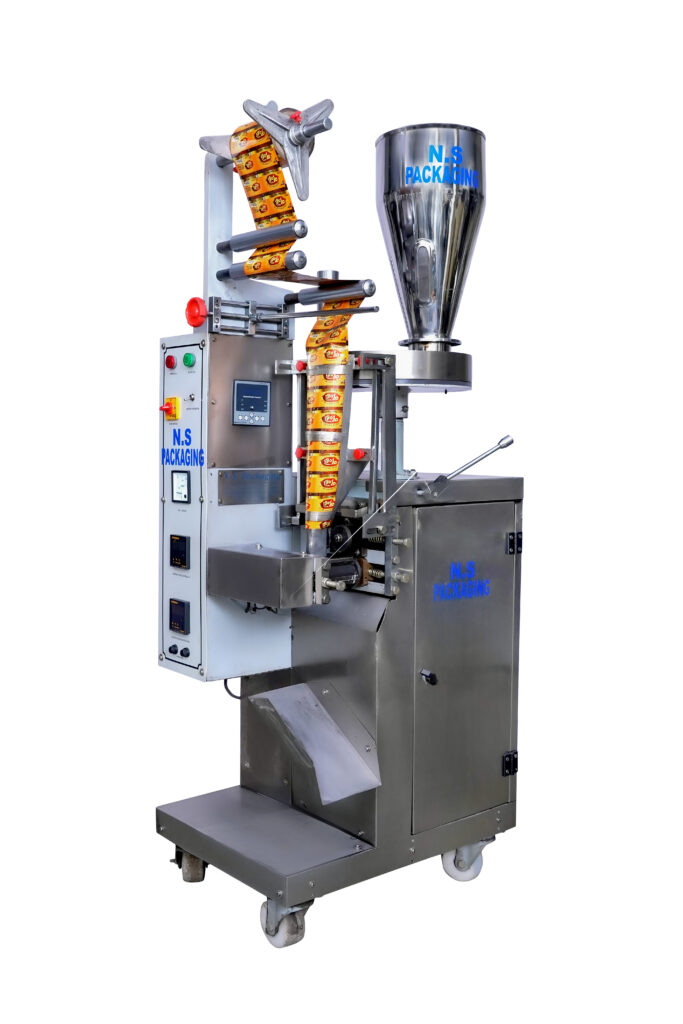

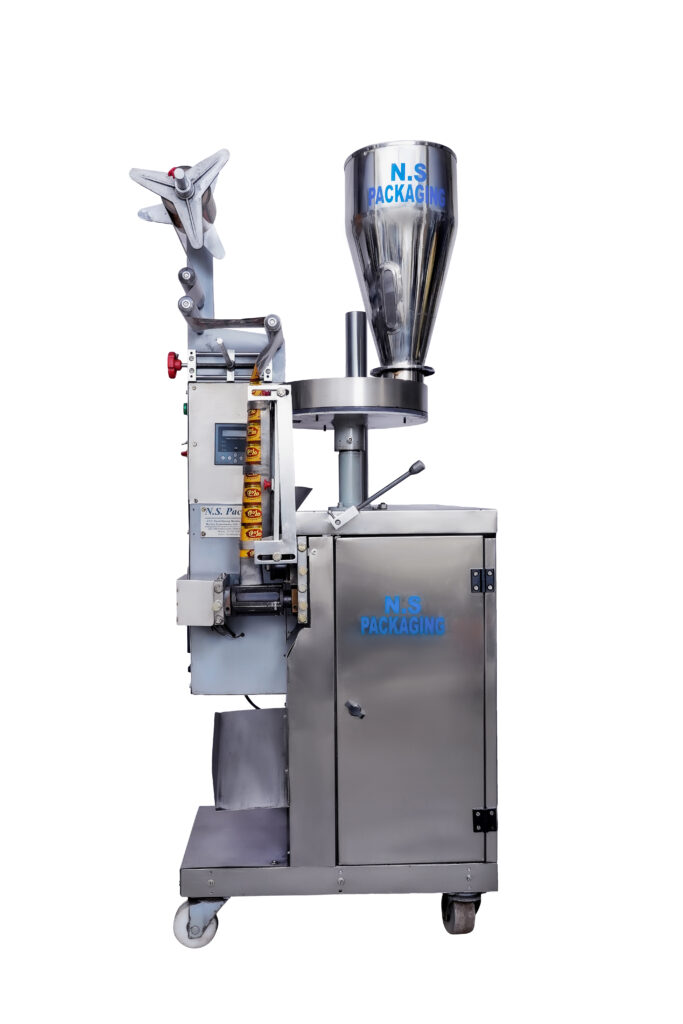

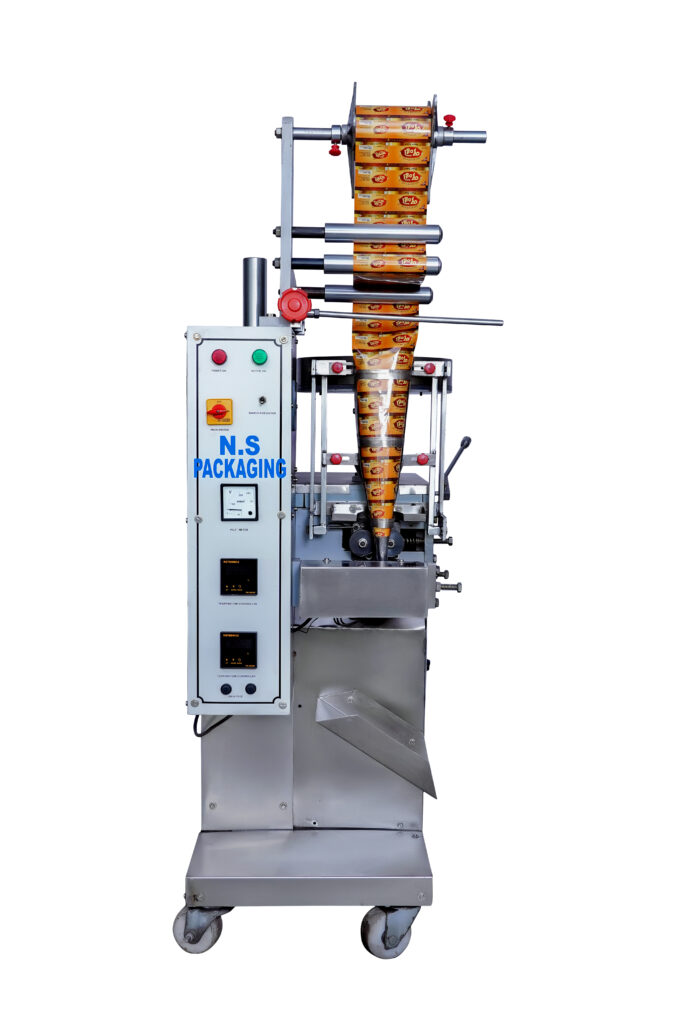

VFFS Cup Filling Machine – Up to 10 gm
VFFS Cup Filling Machine – Up to 10 gm
Model No: NSP-VFFS CUP 10G | Brand: NS Packaging, Indore
The NSP-VFFS CUP 10G by NS Packaging is a compact Vertical Form Fill Seal machine designed for high-speed, small-dose packing (1–10 gm) using a volumetric cup filler. It supports various pouch types, offers speeds up to 120 pouches/min, and is ideal for products like mouth fresheners, spices, tea samples, and pharmaceuticals.
Technical Specifications
- Model: Vertical Form Fill Seal (VFFS) xwith Cup Filler
- Packing Range: 1 gm to 10 gm (customizable)
- Filling System: Volumetric Cup Filler (specially designed for small-dose packing)
- Speed: 40 – 120 pouches per minute (depends on product & pouch size)
- Pouch Type: Center Seal / Three Side Seal / Four Side Seal
- Pouch Size: Width – 30 mm to 80 mm | Length – 40 mm to 120 mm (customizable)
- Sealing Type: Heat sealing with temperature controller
- Accuracy: ±1% (depends on product flow)
- Film Material: Heat sealable laminated film (PET/Poly, Foil/Poly, Paper/Poly, etc.)
- Film Roll Width: Up to 200 mm (customizable)
- Power Requirement: 220V, Single Phase, 50 Hz
- Power Consumption: 2 – 3 kW (approx.)
- Machine Dimensions: Approx. 700 mm (L) x 800 mm (W) x 1800 mm (H)
Suitable For
Gutkha, Mouth Freshener, Pan Masala, Seeds, Candy Powder, Condiments, Spices, Tea Samples, Pharmaceutical & Nutraceutical Granules, and other small-dose packing applications.
Special Features
- Specially designed for small quantity packing (1 gm to 10 gm)
- High-speed & accurate volumetric cup filler
- PENAL based user-friendly operation (optional)
- Low maintenance with SS-304 contact parts
- Automatic pouch length detection & cutting
- Compact design for small space requirement
Product Information
Model No.
NSP-VFFS CUP 10G
Brand
NS Packaging, Indore
Price
20,00,500 INR
Delivery
Pan India
